- 編號：54147602
- 頻率：11.0592MHz
- 尺寸：11.8 x 5.5 mm
ECS-110.5-18-18-TR,SMD晶體諧振器,6G低成本晶振

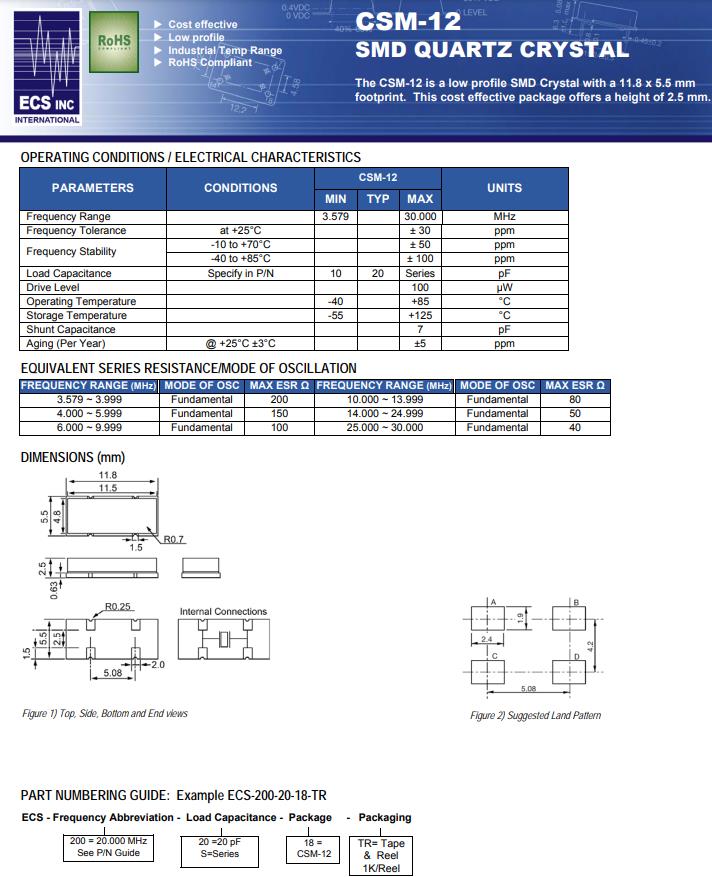

美國伊西斯晶振.CSM-12無源晶振,SMD晶體諧振器,ECS-110.5-18-18-TR晶振,石英晶體,頻率11.0592MHz,負載18pF,工作溫度-10~70°C,頻率容差30ppm,無鉛環保晶振,6G低成本晶振,儀器儀表晶振,智能家居晶振,藍牙模塊晶振,網絡...
.jpg)
ECS-110.5-18-18-TR,SMD晶體諧振器,6G低成本晶振,美國伊西斯晶振.CSM-12無源晶振,SMD晶體諧振器,ECS-110.5-18-18-TR晶振,石英晶體,頻率11.0592MHz,負載18pF,工作溫度-10~70°C,頻率容差30ppm,無鉛環保晶振,6G低成本晶振,儀器儀表晶振,智能家居晶振,藍牙模塊晶振,網絡產品晶振.
ECS-110.5-18-18-TR,SMD晶體諧振器,6G低成本晶振特點：
•成本效益高
•低調
•工業溫度范圍
•符合RoHS標準
•成本效益高
•低調
•工業溫度范圍
•符合RoHS標準
.gif)
ECS-110.5-18-18-TR,SMD晶體諧振器,6G低成本晶振參數表
| PARAMETERS | CONDITIONS | CSM-4AX | UNITS | ||
| MIN | TYP | MAX | |||
| Frequency | 3.57 | 30.000 | MHz | ||
| Mode of Oscillation | Fundamental | ||||
| Frequency Tolerance* | @ +25°C | ± 30 | ppm | ||
| Frequency Stability* | -10 ~ +70°C | ± 50 | ppm | ||
| Shunt Capacitance | Co | 7 | pF | ||
| Load Capacitance | Specify in P/N | 10 | 20 | Series | pF |
| Drive Level | DL | 100 | μW | ||
| Operating Temperature* | Topr | -10 | +70 | °C | |
| Storage Temperature | Tstg | -55 | +125 | °C | |
| Aging (First Year) | @ +25°C ±3°C | ±5 | ppm | ||
.gif)

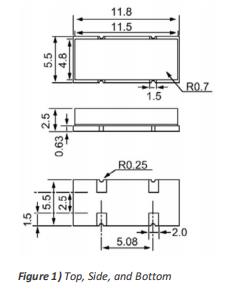

ECS-110.5-18-18-TR,SMD晶體諧振器,6G低成本晶振尺寸圖
| ECS原廠編碼 | 型號 | 頻率 | 頻率偏差 | 負載電容 | 工作溫度 |
| ECS-100-18-18-TR | CSM-12 | 10MHz | ±30ppm | 18pF | -40°C ~ 85°C |
| ECS-110.5-18-18-TR | CSM-12 | 11.0592MHz | ±30ppm | 18pF | -40°C ~ 85°C |
| ECS-110.5-20-18-TR | CSM-12 | 11.0592MHz | ±30ppm | 20pF | -40°C ~ 85°C |
| ECS-110.5-S-18-TR | CSM-12 | 11.0592MHz | ±30ppm | Series | -40°C ~ 85°C |
| ECS-112.896-18-18-TR | CSM-12 | 11.2896MHz | ±30ppm | 18pF | -40°C ~ 85°C |
| ECS-120-18-18-TR | CSM-12 | 12MHz | ±30ppm | 18pF | -40°C ~ 85°C |
| ECS-120-S-18-TR | CSM-12 | 12MHz | ±30ppm | Series | -40°C ~ 85°C |
| ECS-122.8-18-18-TR | CSM-12 | 12.288MHz | ±30ppm | 18pF | -40°C ~ 85°C |
| ECS-143-20-18-TR | CSM-12 | 14.31818MHz | ±30ppm | 20pF | -40°C ~ 85°C |
| ECS-143-S-18-TR | CSM-12 | 14.31818MHz | ±30ppm | Series | -40°C ~ 85°C |
| ECS-147.4-18-18-TR | CSM-12 | 14.7456MHz | ±30ppm | 18pF | -40°C ~ 85°C |
| ECS-153.6-18-18-TR | CSM-12 | 15.36MHz | ±30ppm | 18pF | -40°C ~ 85°C |
| ECS-160-18-18-TR | CSM-12 | 16MHz | ±30ppm | 18pF | -40°C ~ 85°C |
| ECS-160-S-18-TR | CSM-12 | 16MHz | ±30ppm | Series | -40°C ~ 85°C |
| ECS-166.66-18-18-TR | CSM-12 | 16.666MHz | ±30ppm | 18pF | -40°C ~ 85°C |
| ECS-184-18-18-TR | CSM-12 | 18.432MHz | ±30ppm | 18pF | -40°C ~ 85°C |
| ECS-184-S-18-TR | CSM-12 | 18.432MHz | ±30ppm | Series | -40°C ~ 85°C |
| ECS-196.6-S-18-TR | CSM-12 | 19.6608MHz | ±30ppm | Series | -40°C ~ 85°C |
| ECS-200-18-18-TR | CSM-12 | 20MHz | ±30ppm | 18pF | -40°C ~ 85°C |
| ECS-200-20-18-TR | CSM-12 | 20MHz | ±30ppm | 20pF | -40°C ~ 85°C |
| ECS-200-S-18-TR | CSM-12 | 20MHz | ±30ppm | Series | -40°C ~ 85°C |
| ECS-204.8-18-18-TR | CSM-12 | 20.48MHz | ±30ppm | 18pF | -40°C ~ 85°C |
| ECS-221-18-18-TR | CSM-12 | 22.1184MHz | ±30ppm | 18pF | -40°C ~ 85°C |
| ECS-240-16-18-TR | CSM-12 | 24MHz | ±30ppm | 16pF | -40°C ~ 85°C |
| ECS-240-18-18-TR | CSM-12 | 24MHz | ±30ppm | 18pF | -40°C ~ 85°C |
| ECS-240-20-18-TR | CSM-12 | 24MHz | ±30ppm | 20pF | -40°C ~ 85°C |
| ECS-245.7-18-18-TR | CSM-12 | 24.576MHz | ±30ppm | 18pF | -40°C ~ 85°C |
| ECS-250-18-18-TR | CSM-12 | 25MHz | ±30ppm | 18pF | -40°C ~ 85°C |
| ECS-35-17-18-TR | CSM-12 | 3.579545MHz | ±30ppm | 17pF | -40°C ~ 85°C |
| ECS-35-18-18-TR | CSM-12 | 3.579545MHz | ±30ppm | 18pF | -40°C ~ 85°C |
| ECS-36-18-18-TR | CSM-12 | 3.6864MHz | ±30ppm | 18pF | -40°C ~ 85°C |
| ECS-36-20-18-TR | CSM-12 | 3.6864MHz | ±30ppm | 20pF | -40°C ~ 85°C |
| ECS-36-S-18-TR | CSM-12 | 3.6864MHz | ±30ppm | Series | -40°C ~ 85°C |
| ECS-40-18-18-TR | CSM-12 | 4MHz | ±30ppm | 18pF | -40°C ~ 85°C |
| ECS-40-20-18-TR | CSM-12 | 4MHz | ±30ppm | 20pF | -40°C ~ 85°C |
| ECS-40-S-18-TR | CSM-12 | 4MHz | ±30ppm | Series | -40°C ~ 85°C |
| ECS-41-18-18-TR | CSM-12 | 4.096MHz | ±30ppm | 18pF | -40°C ~ 85°C |
| ECS-49-18-18-TR | CSM-12 | 4.9152MHz | ±30ppm | 18pF | -40°C ~ 85°C |
| ECS-49-20-18-TR | CSM-12 | 4.9152MHz | ±30ppm | 20pF | -40°C ~ 85°C |
| ECS-49-S-18-TR | CSM-12 | 4.9152MHz | ±30ppm | Series | -40°C ~ 85°C |
| ECS-50-18-18-TR | CSM-12 | 5MHz | ±30ppm | 18pF | -40°C ~ 85°C |
| ECS-60-18-18-TR | CSM-12 | 6MHz | ±30ppm | 18pF | -40°C ~ 85°C |
| ECS-61-18-18-TR | CSM-12 | 6.144MHz | ±30ppm | 18pF | -40°C ~ 85°C |
| ECS-61-32-18-TR | CSM-12 | 6.144MHz | ±30ppm | 32pF | -40°C ~ 85°C |
| ECS-73-18-18-TR | CSM-12 | 7.3728MHz | ±30ppm | 18pF | -40°C ~ 85°C |
| ECS-73-20-18 | CSM-12 | 7.3728MHz | ±30ppm | 20pF | -40°C ~ 85°C |
| ECS-73-S-18-TR | CSM-12 | 7.3728MHz | ±30ppm | Series | -40°C ~ 85°C |
| ECS-80-18-18-TR | CSM-12 | 8MHz | ±30ppm | 18pF | -40°C ~ 85°C |
| ECS-80-20-18-TR | CSM-12 | 8MHz | ±30ppm | 20pF | -40°C ~ 85°C |
| ECS-80-S-18-TR | CSM-12 | 8MHz | ±30ppm | Series | -40°C ~ 85°C |
| ECS-98.3-20-18-TR | CSM-12 | 9.8304MHz | ±30ppm | 20pF | -40°C ~ 85°C |
| ECS-98.3-S-18-TR | CSM-12 | 9.8304MHz | ±30ppm | Series | -40°C ~ 85°C |
.gif)
