低輪廓超小型石英晶體ABS05-32.768KHZ-9-T用于藍牙低能量應用，Abracon的ABS系列音叉石英晶振廣泛用于從工業和醫療電子產品到消費物聯網小工具的廣泛應用。這些音叉晶體適用于需要小尺寸的RTC電路中的時間管理。ABS05系列音叉提供低功耗，可在許多應用中保持長期電池壽命。在產生相同性能的同時，Abracon現在開發并推出了其微型ABS05系列的4.0pF鍍層 版本。這種 4.0pF 鍍層選項將使任何電路消耗更少的功率并顯著加快啟動速度。

Manufacturer Part Number  原廠編碼	Manufacturer廠家	Series型號	Type 系列	Frequency頻率
ABM3C-36.000MHZ-D4Y-T	Abracon晶振	ABM3C	MHz Crystal	36MHz
ABMM-25.000MHZ-D2X-T	Abracon晶振	ABMM	MHz Crystal	25MHz
ABS05-32.768KHZ-9-T	Abracon晶振	ABS05	kHz Crystal (Tuning Fork)	32.768kHz
ABM3-24.576MHZ-B2-T	Abracon晶振	ABM3	MHz Crystal	24.576MHz
ABM8G-16.384MHZ-18-D2Y-T	ABRACON晶振	ABM8G	MHz Crystal	16.384MHz
ABM10-32.000MHZ-7-A15-T	Abracon晶振	ABM10	MHz Crystal	32MHz
ABLS-LR-4.433619MHZ-T	Abracon晶振	ABLS-LR	MHz Crystal	4.433619MHz
ABLS-LR-4.500MHZ-T	Abracon晶振	ABLS-LR	MHz Crystal	4.5MHz
ABLS-LR-9.216MHZ-T	Abracon晶振	ABLS-LR	MHz Crystal	9.216MHz
ABLS-LR-14.31818MHZ-T	Abracon晶振	ABLS-LR	MHz Crystal	14.31818MHz
ABLS-LR-15.360MHZ-T	Abracon晶振	ABLS-LR	MHz Crystal	15.36MHz
ABLS-LR-16.384MHZ-T	Abracon晶振	ABLS-LR	MHz Crystal	16.384MHz
ABLS-LR-24.576MHZ-F-T	Abracon晶振	ABLS-LR	MHz Crystal	24.576MHz

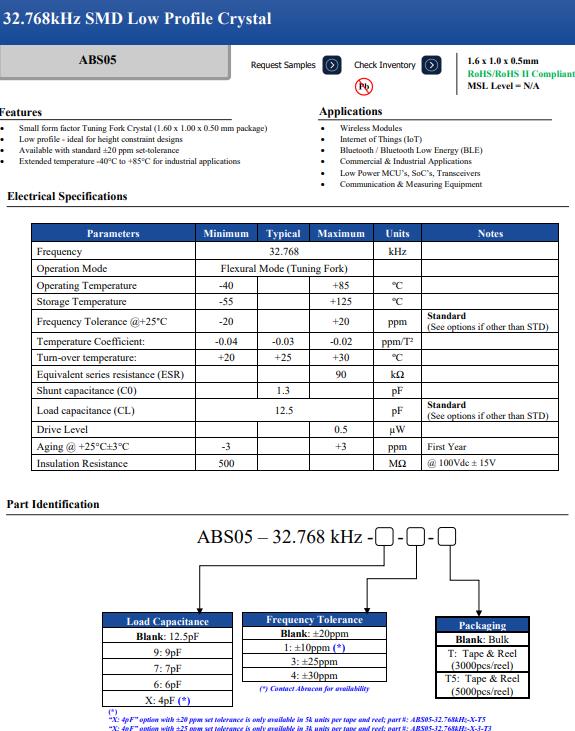

ABS05系列的設計具有4.0pF的極低負載電容選項，低損耗石英晶體，貼片晶振編碼ABS05-32.768KHZ-9-T，小尺寸音叉晶體(1.60 x 1.00 x 0.50 mm包裝)，低輪廓-理想的高度限制設計，可提供標準±20 ppm設置公差，工業應用擴展溫度-40°C至+85°C，可通過特殊的過程控制技術實現；低功耗振蕩器電路的關鍵因素。當作為實時時鐘 (RTC) 和最終傳輸頻率的一部分時，這些技術最大限度地提高了諧振頻率的準確性。

低輪廓超小型石英晶體ABS05-32.768KHZ-9-T用于藍牙低能量應用，這些晶振還具有1.6 x 1.0mm的超小型尺寸和 4 焊盤SMD封裝。盡管尺寸超小，ABS05系列的最大等效串聯電阻 (ESR) 僅為 90 kΩ。可用頻率容差為 ±30ppm、±25ppm 和 ±20ppm，可根據要求提供±10ppm。ABS05是具有嚴格尺寸限制的新設計的理想解決方案。
Abracon’s ABS family of tuning fork quartz crystals is utilized in a wide range of applications from industrial and medical electronics to consumer IoT gadgets. These tuning fork crystals are suited for time management in RTC circuits needing small form factors. The ABS05 series tuning forks provide low power consumption to preserve long term battery life in many applications. While producing the same performance, Abracon has now developed and introduced a 4.0pF plated version of its miniature ABS05 series. This 4.0pF plated option will enable any circuit to consume less power and start-up significantly faster.
The ABS05 series is designed with the option of exceptionally low load capacitance at 4.0pF made possible with special process control techniques; a key factor for a low power consumption oscillator circuit. These techniques maximize the accuracy of the resonant frequency when part of a real-time clock (RTC) and final transmit frequency.
These crystals also have an ultra-miniature size at 1.6 x 1.0mm with a 4-pad SMD footprint. Despite the ultra-small size, the ABS05 Series has a maximum Equivalent Series Resistance (ESR) of only 90 k?. Available frequency tolerances are ±30ppm, ±25ppm and ±20ppm with ±10ppm available on request. The ABS05 is an ideal solution for newer designs with tight size constraints.
