更多>>FA-118T貼片晶振X1E000251006800適用于可穿戴設備應用
來源：http://www.xlspa.cn 作者：康華爾電子 2022年09月29
隨著高科技產品的可穿戴設備且使用方便讓電路板中的各路元器件都使出渾身解數，力求越來越小的同時還要越來越精密，因此小型化的貼片尺寸成了很多廠家的需要考慮條件。

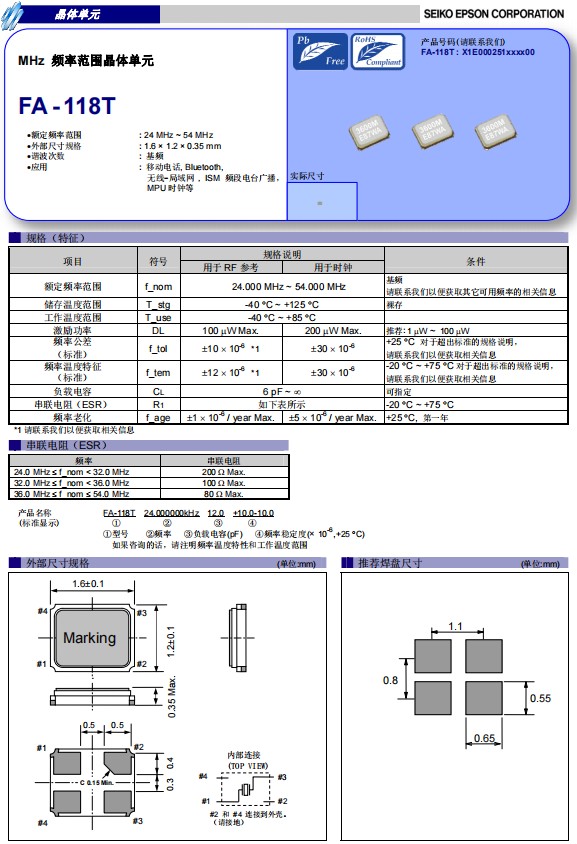

日本愛普生晶振FA-118T，是一款超小型尺寸1.6x1.2mm石英晶體諧振器，頻率范圍:24MHz至54MHz，無源晶振，工作溫度范圍-40℃至+85℃，具有超小型，輕薄型，耐熱及耐環境特性，隨著民生用市場中可無線通信產品的發展和迅速普及，搭載近距離無線通信Bluetooth功能的產品逐漸增加，FA-118T貼片晶振是當今深受廣大客戶歡迎的小尺寸晶振，被廣泛用于隨身攜帶設備，可穿戴設備，移動電話，無線-局域網，智能手機，平板電腦，數碼電子等領域。
FA-118T貼片晶振X1E000251006800適用于可穿戴設備應用,X1E000251006500,無源晶振
FA-118T貼片晶振X1E000251006800適用于可穿戴設備應用,X1E000251006500,無源晶振
智能手環是一種穿戴式智能設備。通過這款手環，用戶可以記錄日常生活中的鍛煉、睡眠、部分還有飲食等實時數據，并將這些數據與手機、平板、ipodtouch同步，起到通過數據指導健康生活的作用。
FA-118T無源晶振的精準度及壽命為智能手環提供了良好穩定的同步功能和顯示功能。具有體積小，超薄占空間少，焊接省時省力的特點，是智能手環的不二選擇。
日本愛普生晶振FA-118T，是一款超小型尺寸1.6x1.2mm石英晶體諧振器，頻率范圍:24MHz至54MHz，無源晶振，工作溫度范圍-40℃至+85℃，具有超小型，輕薄型，耐熱及耐環境特性，隨著民生用市場中可無線通信產品的發展和迅速普及，搭載近距離無線通信Bluetooth功能的產品逐漸增加，FA-118T貼片晶振是當今深受廣大客戶歡迎的小尺寸晶振，被廣泛用于隨身攜帶設備，可穿戴設備，移動電話，無線-局域網，智能手機，平板電腦，數碼電子等領域。
FA-118T貼片晶振X1E000251006800適用于可穿戴設備應用,X1E000251006500,無源晶振
| 愛普生晶振 |
 尺寸 |
 型號 |
 頻率 |
 負載電容 |
 頻率 |
  頻率公差 |
 工作溫度 |
| X1E000251000900 | 1.6x1.2x0.35mm | FA-118T | 27.120000MHz | 10pF | +/-30ppm | +/-50ppm | -20to+75°C |
| X1E000251001100 | 1.6x1.2x0.35mm | FA-118T | 26.000000MHz | 8pF | +/-10ppm | +/-10ppm | -20to+75°C |
| X1E000251001400 | 1.6x1.2x0.35mm | FA-118T | 26.000000MHz | 9pF | +/-10ppm | +/-12ppm | -20to+75°C |
| X1E000251001600 | 1.6x1.2x0.35mm | FA-118T | 37.400000MHz | 16pF | +/-10ppm | +/-10ppm | -20to+85°C |
| X1E000251003100 | 1.6x1.2x0.35mm | FA-118T | 37.400000MHz | 16pF | +/-7ppm | +/-10ppm | -30to+85°C |
| X1E000251003200 | 1.6x1.2x0.35mm | FA-118T | 40.000000MHz | 10pF | +/-10ppm | +/-10ppm | -20to+75°C |
| X1E000251003300 | 1.6x1.2x0.35mm | FA-118T | 25.000000MHz | 10pF | +/-30ppm | +/-30ppm | -20to+75°C |
| X1E000251003400 | 1.6x1.2x0.35mm | FA-118T | 25.000000MHz | 9pF | +/-30ppm | +/-30ppm | -20to+75°C |
| X1E000251003500 | 1.6x1.2x0.35mm | FA-118T | 30.000000MHz | 8pF | +/-20ppm | +/-20ppm | -20to+75°C |
| X1E000251004600 | 1.6x1.2x0.35mm | FA-118T | 24.000000MHz | 12pF | +/-10ppm | +/-10ppm | -20to+75°C |
| X1E000251005000 | 1.6x1.2x0.35mm | FA-118T | 32.000000MHz | 9pF | +/-10ppm | +/-12ppm | -20to+75°C |
| X1E000251005600 | 1.6x1.2x0.35mm | FA-118T | 52.000000MHz | 9pF | +/-15ppm | +/-12ppm | -20to+75°C |
| X1E000251005700 | 1.6x1.2x0.35mm | FA-118T | 25.000000MHz | 7pF | +/-30ppm | +/-30ppm | -20to+75°C |
| X1E000251005900 | 1.6x1.2x0.35mm | FA-118T | 32.000000MHz | 8pF | +/-10ppm | +/-10ppm | -20to+75°C |
| X1E000251006000 | 1.6x1.2x0.35mm | FA-118T | 48.000000MHz | 10pF | +/-30ppm | +/-30ppm | -20to+75°C |
| X1E000251006400 | 1.6x1.2x0.35mm | FA-118T | 26.000000MHz | 12pF | +/-10ppm | +/-12ppm | -20to+75°C |
| X1E000251006500 | 1.6x1.2x0.35mm | FA-118T | 32.000000MHz | 10pF | +/-10ppm | +/-12ppm | -20to+75°C |
| X1E000251006800 | 1.6x1.2x0.35mm | FA-118T | 24.000000MHz | 8pF | +/-30ppm | +/-30ppm | -20to+75°C |
| X1E000251006900 | 1.6x1.2x0.35mm | FA-118T | 24.000000MHz | 10pF | +/-30ppm | +/-30ppm | -20to+75°C |
| X1E000251007100 | 1.6x1.2x0.35mm | FA-118T | 40.000000MHz | 12pF | +/-8ppm | +/-10ppm | -30to+85°C |
| X1E000251007500 | 1.6x1.2x0.35mm | FA-118T | 26.000000MHz | 8pF | +/-10ppm | +/-10ppm | -30to+85°C |
| X1E000251007700 | 1.6x1.2x0.35mm | FA-118T | 25.000000MHz | 9pF | +/-10ppm | +/-10ppm | -20to+75°C |
| X1E000251007800 | 1.6x1.2x0.35mm | FA-118T | 40.000000MHz | 7pF | +/-10ppm | +/-10ppm | -20to+75°C |
| X1E000251007900 | 1.6x1.2x0.35mm | FA-118T | 32.000000MHz | 9pF | +/-10ppm | +/-10ppm | -20to+75°C |
| X1E000251008000 | 1.6x1.2x0.35mm | FA-118T | 32.000000MHz | 6pF | +/-10ppm | +/-12ppm | -20to+75°C |
| X1E000251008600 | 1.6x1.2x0.35mm | FA-118T | 32.000000MHz | 8pF | +/-20ppm | +/-20ppm | -20to+75°C |
| X1E000251009900 | 1.6x1.2x0.35mm | FA-118T | 48.000000MHz | 6pF | +/-30ppm | +/-30ppm | -20to+75°C |
| X1E000251010200 | 1.6x1.2x0.35mm | FA-118T | 50.000000MHz | 8pF | +/-30ppm | +/-30ppm | -40to+85°C |
| X1E000251010400 | 1.6x1.2x0.35mm | FA-118T | 32.000000MHz | 10pF | +/-20ppm | +/-30ppm | -40to+85°C |
| X1E000251011100 | 1.6x1.2x0.35mm | FA-118T | 25.000000MHz | 10pF | +/-50ppm | +/-30ppm | -20to+75°C |
| X1E000251011300 | 1.6x1.2x0.35mm | FA-118T | 25.000000MHz | 8pF | +/-10ppm | +/-15ppm | -30to+85°C |
| X1E000251012100 | 1.6x1.2x0.35mm | FA-118T | 24.000000MHz | 8pF | +/-10ppm | +/-10ppm | -20to+85°C |
| X1E000251012600 | 1.6x1.2x0.35mm | FA-118T | 24.000000MHz | 7pF | +/-30ppm | +/-30ppm | -20to+75°C |
| X1E000251013400 | 1.6x1.2x0.35mm | FA-118T | 32.000000MHz | 8pF | +/-10ppm | +/-12ppm | -20to+85°C |
| X1E000251013800 | 1.6x1.2x0.35mm | FA-118T | 32.000000MHz | 6pF | +/-10ppm | +/-15ppm | -20to+70°C |
| X1E000251014100 | 1.6x1.2x0.35mm | FA-118T | 32.000000MHz | 8pF | +/-20ppm | +/-20ppm | -40to+85°C |
| X1E000251014400 | 1.6x1.2x0.35mm | FA-118T | 24.000000MHz | 20pF | +/-30ppm | +/-30ppm | -20to+75°C |
| X1E000251015000 | 1.6x1.2x0.35mm | FA-118T | 38.400000MHz | 20pF | +/-10ppm | +/-10ppm | -20to+75°C |
| X1E000251015200 | 1.6x1.2x0.35mm | FA-118T | 48.000000MHz | 8pF | +/-10ppm | +/-20ppm | -40to+85°C |
| X1E000251015300 | 1.6x1.2x0.35mm | FA-118T | 24.000000MHz | 8pF | +/-10ppm | +/-20ppm | -40to+85°C |
| X1E000251015500 | 1.6x1.2x0.35mm | FA-118T | 32.000000MHz | 9pF | +/-30ppm | +/-30ppm | -20to+75°C |
| X1E000251015800 | 1.6x1.2x0.35mm | FA-118T | 50.000000MHz | 12pF | +/-10ppm | +/-15ppm | -40to+85°C |
| X1E000251016100 | 1.6x1.2x0.35mm | FA-118T | 37.400000MHz | 8pF | +/-10ppm | +/-10ppm | -30to+85°C |
| X1E000251016600 | 1.6x1.2x0.35mm | FA-118T | 32.000000MHz | 10pF | +/-10ppm | +/-10ppm | -30to+85°C |
| X1E000251019000 | 1.6x1.2x0.35mm | FA-118T | 40.000000MHz | 12pF | +/-10ppm | +/-10ppm | -30to+85°C |
| X1E000251019700 | 1.6x1.2x0.35mm | FA-118T | 32.000000MHz | 6pF | +/-10ppm | +/-10ppm | -20to+75°C |
| X1E000251020100 | 1.6x1.2x0.35mm | FA-118T | 38.400000MHz | 8pF | +/-10ppm | +/-10ppm | -20to+85°C |
| X1E000251021200 | 1.6x1.2x0.35mm | FA-118T | 40.000000MHz | 6pF | +/-10ppm | +/-20ppm | -40to+85°C |
| X1E000251021500 | 1.6x1.2x0.35mm | FA-118T | 32.000000MHz | 6pF | +/-20ppm | +/-20ppm | -40to+85°C |
| X1E000251021900 | 1.6x1.2x0.35mm | FA-118T | 40.000000MHz | 10pF | +/-10ppm | +/-20ppm | -40to+85°C |
智能手環是一種穿戴式智能設備。通過這款手環，用戶可以記錄日常生活中的鍛煉、睡眠、部分還有飲食等實時數據，并將這些數據與手機、平板、ipodtouch同步，起到通過數據指導健康生活的作用。
FA-118T無源晶振的精準度及壽命為智能手環提供了良好穩定的同步功能和顯示功能。具有體積小，超薄占空間少，焊接省時省力的特點，是智能手環的不二選擇。
