更多>>SG3225CAN貼片晶振X1G005961000115適用于智能安防設備
來源：http://www.xlspa.cn 作者：康華爾電子 2022年09月27
EPSON晶振發展成立至今成為國際赫赫有名的電子元件制造商,不僅為用戶提供優異的石英晶振,貼片晶振,TCXO晶振,時鐘晶體振蕩器等產品,同時致力于為用戶提供高可靠技術解決方案.為了更好的服務全球用戶,愛普生晶振的生產銷售據點遍布日本,馬來西亞,蘇州,泰國等國家.

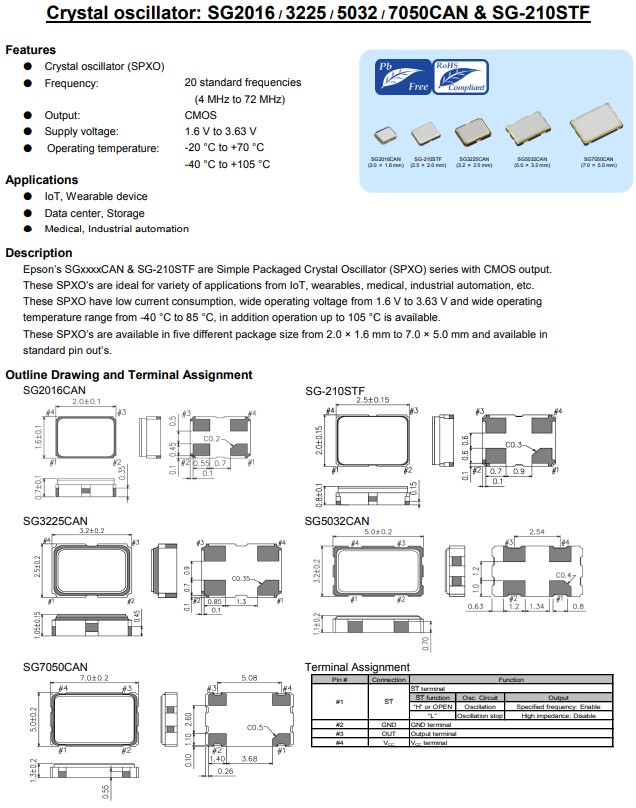

愛普生晶振SG3225CAN是一款CMOS輸出的石英晶體振蕩器(SPXO)系列，小體積尺寸3.2x2.5mm有源晶振，四腳貼片晶振，具有低電流消耗、1.6V至3.63V的寬工作電壓和寬工作溫度范圍從-40℃到+85℃（+105℃）。這些SPXO提供從2.0x1.6mm到7.0x5.0mm的五種不同封裝尺寸，并提供標準引腳排列。具有超小型，輕薄型，低抖動，低功耗，高性能等特點。應用于5G移動通訊設備，工業控制，消費電子，智能安防設備，物聯網，車載電子，光電技術及各種變頻調速設備等通訊設備。
SG3225CAN貼片晶振X1G005961000115適用于智能安防設備,X1G005961002415,3225mm有源晶振
SG3225CAN貼片晶振X1G005961000115適用于智能安防設備,X1G005961002415,3225mm有源晶振
愛普生晶振SG3225CAN是一款CMOS輸出的石英晶體振蕩器(SPXO)系列，小體積尺寸3.2x2.5mm有源晶振，四腳貼片晶振，具有低電流消耗、1.6V至3.63V的寬工作電壓和寬工作溫度范圍從-40℃到+85℃（+105℃）。這些SPXO提供從2.0x1.6mm到7.0x5.0mm的五種不同封裝尺寸，并提供標準引腳排列。具有超小型，輕薄型，低抖動，低功耗，高性能等特點。應用于5G移動通訊設備，工業控制，消費電子，智能安防設備，物聯網，車載電子，光電技術及各種變頻調速設備等通訊設備。
SG3225CAN貼片晶振X1G005961000115適用于智能安防設備,X1G005961002415,3225mm有源晶振
                                     產品編碼 |
 型號 |
 有源晶振 |
 尺寸 |
 輸出波 |
| X1G005961000115 | SG3225CAN | 24.000000MHz | 3.20x2.50x1.05mm | CMOS |
| X1G005961000215 | SG3225CAN | 25.000000MHz | 3.20x2.50x1.05mm | CMOS |
| X1G005961000315 | SG3225CAN | 48.000000MHz | 3.20x2.50x1.05mm | CMOS |
| X1G005961000415 | SG3225CAN | 8.000000MHz | 3.20x2.50x1.05mm | CMOS |
| X1G005961000515 | SG3225CAN | 10.000000MHz | 3.20x2.50x1.05mm | CMOS |
| X1G005961000615 | SG3225CAN | 12.000000MHz | 3.20x2.50x1.05mm | CMOS |
| X1G005961000715 | SG3225CAN | 20.000000MHz | 3.20x2.50x1.05mm | CMOS |
| X1G005961000815 | SG3225CAN | 24.576000MHz | 3.20x2.50x1.05mm | CMOS |
| X1G005961000915 | SG3225CAN | 40.000000MHz | 3.20x2.50x1.05mm | CMOS |
| X1G005961001015 | SG3225CAN | 50.000000MHz | 3.20x2.50x1.05mm | CMOS |
| X1G005961001115 | SG3225CAN | 4.000000MHz | 3.20x2.50x1.05mm | CMOS |
| X1G005961001215 | SG3225CAN | 4.000000MHz | 3.20x2.50x1.05mm | CMOS |
| X1G005961001315 | SG3225CAN | 8.000000MHz | 3.20x2.50x1.05mm | CMOS |
| X1G005961001415 | SG3225CAN | 10.000000MHz | 3.20x2.50x1.05mm | CMOS |
| X1G005961001515 | SG3225CAN | 12.000000MHz | 3.20x2.50x1.05mm | CMOS |
| X1G005961001615 | SG3225CAN | 12.000000MHz | 3.20x2.50x1.05mm | CMOS |
| X1G005961001715 | SG3225CAN | 12.288000MHz | 3.20x2.50x1.05mm | CMOS |
| X1G005961001815 | SG3225CAN | 12.288000MHz | 3.20x2.50x1.05mm | CMOS |
| X1G005961001915 | SG3225CAN | 12.288000MHz | 3.20x2.50x1.05mm | CMOS |
| X1G005961002015 | SG3225CAN | 14.745600MHz | 3.20x2.50x1.05mm | CMOS |
| X1G005961002115 | SG3225CAN | 14.745600MHz | 3.20x2.50x1.05mm | CMOS |
| X1G005961002215 | SG3225CAN | 16.000000MHz | 3.20x2.50x1.05mm | CMOS |
| X1G005961002315 | SG3225CAN | 16.000000MHz | 3.20x2.50x1.05mm | CMOS |
| X1G005961002415 | SG3225CAN | 20.000000MHz | 3.20x2.50x1.05mm | CMOS |
| X1G005961002515 | SG3225CAN | 20.000000MHz | 3.20x2.50x1.05mm | CMOS |
| X1G005961002615 | SG3225CAN | 24.000000MHz | 3.20x2.50x1.05mm | CMOS |
| X1G005961002715 | SG3225CAN | 24.000000MHz | 3.20x2.50x1.05mm | CMOS |
| X1G005961002815 | SG3225CAN | 24.576000MHz | 3.20x2.50x1.05mm | CMOS |
| X1G005961002915 | SG3225CAN | 25.000000MHz | 3.20x2.50x1.05mm | CMOS |
| X1G005961003015 | SG3225CAN | 25.000000MHz | 3.20x2.50x1.05mm | CMOS |
| X1G005961003115 | SG3225CAN | 26.000000MHz | 3.20x2.50x1.05mm | CMOS |
| X1G005961003215 | SG3225CAN | 26.000000MHz | 3.20x2.50x1.05mm | CMOS |
| X1G005961003315 | SG3225CAN | 27.000000MHz | 3.20x2.50x1.05mm | CMOS |
| X1G005961003415 | SG3225CAN | 27.000000MHz | 3.20x2.50x1.05mm | CMOS |
| X1G005961003515 | SG3225CAN | 32.000000MHz | 3.20x2.50x1.05mm | CMOS |
| X1G005961003615 | SG3225CAN | 32.000000MHz | 3.20x2.50x1.05mm | CMOS |
| X1G005961003715 | SG3225CAN | 33.330000MHz | 3.20x2.50x1.05mm | CMOS |
| X1G005961003815 | SG3225CAN | 33.330000MHz | 3.20x2.50x1.05mm | CMOS |
| X1G005961003915 | SG3225CAN | 33.333300MHz | 3.20x2.50x1.05mm | CMOS |
| X1G005961004015 | SG3225CAN | 33.333300MHz | 3.20x2.50x1.05mm | CMOS |
| X1G005961004115 | SG3225CAN | 40.000000MHz | 3.20x2.50x1.05mm | CMOS |
| X1G005961004215 | SG3225CAN | 48.000000MHz | 3.20x2.50x1.05mm | CMOS |
| X1G005961004315 | SG3225CAN | 48.000000MHz | 3.20x2.50x1.05mm | CMOS |
| X1G005961004415 | SG3225CAN | 50.000000MHz | 3.20x2.50x1.05mm | CMOS |
| X1G005961004515 | SG3225CAN | 50.000000MHz | 3.20x2.50x1.05mm | CMOS |
| X1G005961004615 | SG3225CAN | 72.000000MHz | 3.20x2.50x1.05mm | CMOS |
| X1G005961004715 | SG3225CAN | 72.000000MHz | 3.20x2.50x1.05mm | CMOS |
| X1G005961004815 | SG3225CAN | 72.000000MHz | 3.20x2.50x1.05mm | CMOS |
晶振特點和屬性：
1. 按形狀區分晶振有SMD（貼片晶振）和DIP（插件晶振）兩種。貼片晶振價格跟插件晶振相對比下，貼片晶振價格貴些。
2. 按頻率區分貼片晶振有MHZ和KHZ。MHZ常用封裝的有SMD2016、SMD2520、SMD3225、SMD5032、SMD6035、SMD7050。而KHZ最常用的頻率32.768KHZ；在手機和藍牙應用的晶振頻率有：12MHZ，16MHZ，24 MHZ，26 MHZ，32 MHZ貼片晶振配套使用。
3. 按性能區分貼片晶振分為：有源晶振（石英晶體振蕩器、溫補振蕩器、壓控振蕩器、壓控溫補振蕩器）和無源晶振（石英晶體諧振器、陶瓷晶振）。
4. 按材質區分貼片晶振分為金屬封裝和陶瓷封裝。
