更多>>藍牙AOA定位有源晶振X1G004171002700
來源：http://www.xlspa.cn 作者：康華爾電子 2022年10月14
愛普生是日本有名的頻率元件制造商,專業生產銷售石英晶振,石英晶體振蕩器,貼片晶振,晶體濾波器等.發展至今已是國際有名的晶體元件制造商,致力于為客戶提供高性能,高可靠,高品質晶振產品。
愛普生晶振SG-210STF是一款CMOS輸出石英晶體振蕩器(SPXO)系列。小體積尺寸2.5x2.0mm四腳貼片晶振，有源晶振，1.6V至3.63V的寬工作電壓和-40℃至+105℃的寬工作溫度范圍，頻率范圍1MHz至75MHz，具有超小型，輕薄型，低抖動，低功耗，耐熱及耐環境特性，非常適合物聯網，藍牙AOA定位，可穿戴設備，醫療設備，數據中心，存儲，工業自動化等各種應用。藍牙AOA定位有源晶振X1G004171002700,X1G004171005900,石英晶體振蕩器
藍牙AOA定位有源晶振X1G004171002700,X1G004171005900,石英晶體振蕩器
石英晶體振蕩器（以下簡稱晶振）是利用石英晶體壓電效應而制成的器件，它的作用是輸出高精度和高穩定度的脈沖信號，為整個電路提供時序基準。我們知道，現在電路中有越來越多的時序電路，它們之間的協同運行必須要有一個時間基準，才能統一一致的行動，就像電視劇里特種行動小隊在出發前都要對下表一樣，晶振在系統中起的作用就如同隊長的手表，它如果穩定性或準確性不好的話，那整個系統就會錯誤頻出，故障率很高。所以又把晶振稱為單板的“心臟”。 石英晶體振蕩器是由品質因數Q極高的石英晶體諧振器和振蕩電路組成。晶體的品質因數、切割取向、晶體振子的結構及電路形式等，共同決定振蕩器的性能。國際電工委員會（IEC）將石英晶體振蕩器分為4類：普通晶體振蕩（SPXO），電壓控制式晶體振蕩（VCXO），溫度補償式晶體振蕩（TCXO），恒溫控制式晶體振蕩（OCXO）。目前發展中的還有數字補償式晶體振蕩（DCXO）以及混合式的VOCXO振蕩等。

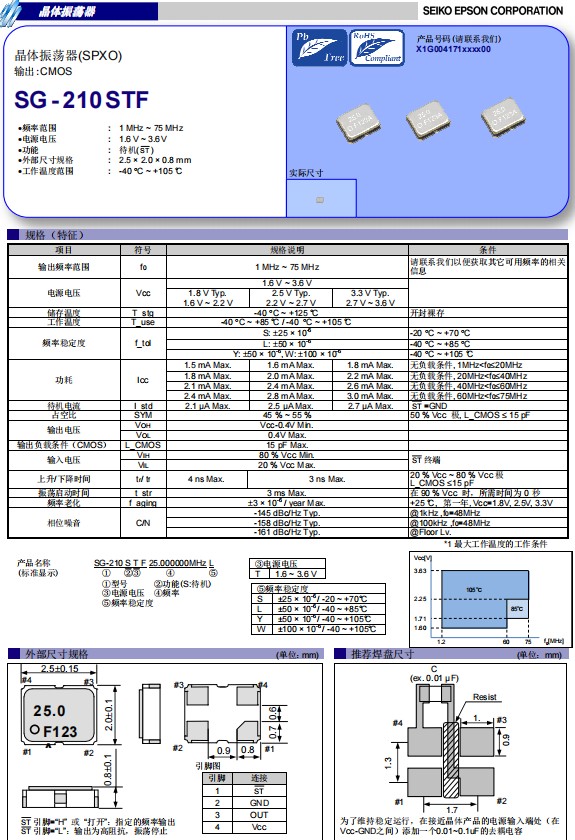

愛普生晶振SG-210STF是一款CMOS輸出石英晶體振蕩器(SPXO)系列。小體積尺寸2.5x2.0mm四腳貼片晶振，有源晶振，1.6V至3.63V的寬工作電壓和-40℃至+105℃的寬工作溫度范圍，頻率范圍1MHz至75MHz，具有超小型，輕薄型，低抖動，低功耗，耐熱及耐環境特性，非常適合物聯網，藍牙AOA定位，可穿戴設備，醫療設備，數據中心，存儲，工業自動化等各種應用。藍牙AOA定位有源晶振X1G004171002700,X1G004171005900,石英晶體振蕩器
             產品編碼 |
 型號 |
 頻率 |
 貼片晶振 |
 輸出波 |
 電源電壓 |
 工作溫度 |
| X1G004171000900 | SG-210STF | 4.000000MHz | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G004171001500 | SG-210STF | 8.000000MHz | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G004171001600 | SG-210STF | 10.000000MHz | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G004171001800 | SG-210STF | 12.000000MHz | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G004171001900 | SG-210STF | 12.288000MHz | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G004171002500 | SG-210STF | 14.745600MHz | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G004171002700 | SG-210STF | 16.000000MHz | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G004171002900 | SG-210STF | 20.000000MHz | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G004171003100 | SG-210STF | 24.000000MHz | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G004171003200 | SG-210STF | 24.576000MHz | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G004171003300 | SG-210STF | 25.000000MHz | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G004171003400 | SG-210STF | 26.000000MHz | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G004171003500 | SG-210STF | 27.000000MHz | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G004171004000 | SG-210STF | 32.000000MHz | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G004171004500 | SG-210STF | 40.000000MHz | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G004171004600 | SG-210STF | 48.000000MHz | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G004171004700 | SG-210STF | 50.000000MHz | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G004171005900 | SG-210STF | 25.000000MHz | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630V | -40 to 105°C |
| X1G004171006100 | SG-210STF | 12.288000MHz | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630V | -20 to 70°C |
| X1G004171006900 | SG-210STF | 8.000000MHz | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630V | -40 to 105°C |
| X1G004171007500 | SG-210STF | 33.333300MHz | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630V | -40 to 105°C |
| X1G004171007700 | SG-210STF | 25.000000MHz | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630V | -20 to 70°C |
| X1G004171007800 | SG-210STF | 48.000000MHz | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630V | -20 to 70°C |
| X1G004171007900 | SG-210STF | 50.000000MHz | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630V | -20 to 70°C |
| X1G004171011900 | SG-210STF | 33.330000MHz | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G004171012000 | SG-210STF | 33.333300MHz | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630V | -40 to 85°C |
| X1G004171012400 | SG-210STF | 72.000000MHz | 2.50x2.00x0.80mm | CMOS | 1.710 to 3.630V | -40 to 85°C |
| X1G004171012600 | SG-210STF | 50.000000MHz | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630V | -40 to 105°C |
| X1G004171012700 | SG-210STF | 32.000000MHz | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630V | -40 to 105°C |
| X1G004171015400 | SG-210STF | 16.000000MHz | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630V | -40 to 105°C |
| X1G004171015600 | SG-210STF | 24.000000MHz | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630V | -20 to 70°C |
| X1G004171016300 | SG-210STF | 12.000000MHz | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630V | -20 to 70°C |
| X1G004171019700 | SG-210STF | 24.000000MHz | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630V | -40 to 105°C |
| X1G004171020600 | SG-210STF | 40.000000MHz | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630V | -40 to 105°C |
| X1G004171021800 | SG-210STF | 20.000000MHz | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630V | -20 to 70°C |
| X1G004171023800 | SG-210STF | 20.000000MHz | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630V | -40 to 105°C |
| X1G004171024400 | SG-210STF | 26.000000MHz | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630V | -40 to 105°C |
| X1G004171025000 | SG-210STF | 27.000000MHz | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630V | -40 to 105°C |
| X1G004171028000 | SG-210STF | 12.000000MHz | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630V | -40 to 105°C |
| X1G004171029900 | SG-210STF | 4.000000MHz | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630V | -40 to 105°C |
| X1G004171030000 | SG-210STF | 33.330000MHz | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630V | -40 to 105°C |
| X1G004171036500 | SG-210STF | 10.000000MHz | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630V | -40 to 105°C |
| X1G004171036600 | SG-210STF | 12.288000MHz | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630V | -40 to 105°C |
| X1G004171036700 | SG-210STF | 14.745600MHz | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630V | -40 to 105°C |
| X1G004171036800 | SG-210STF | 24.576000MHz | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630V | -40 to 105°C |
| X1G004171036900 | SG-210STF | 48.000000MHz | 2.50x2.00x0.80mm | CMOS | 1.620 to 3.630V | -40 to 105°C |
| X1G004171037000 | SG-210STF | 72.000000MHz | 2.50x2.00x0.80mm | CMOS | 1.710 to 3.630V | -20 to 70°C |
| X1G004171037100 | SG-210STF | 72.000000MHz | 2.50x2.00x0.80mm | CMOS | 2.250 to 3.630V | -40 to 105°C |
石英晶體振蕩器（以下簡稱晶振）是利用石英晶體壓電效應而制成的器件，它的作用是輸出高精度和高穩定度的脈沖信號，為整個電路提供時序基準。我們知道，現在電路中有越來越多的時序電路，它們之間的協同運行必須要有一個時間基準，才能統一一致的行動，就像電視劇里特種行動小隊在出發前都要對下表一樣，晶振在系統中起的作用就如同隊長的手表，它如果穩定性或準確性不好的話，那整個系統就會錯誤頻出，故障率很高。所以又把晶振稱為單板的“心臟”。 石英晶體振蕩器是由品質因數Q極高的石英晶體諧振器和振蕩電路組成。晶體的品質因數、切割取向、晶體振子的結構及電路形式等，共同決定振蕩器的性能。國際電工委員會（IEC）將石英晶體振蕩器分為4類：普通晶體振蕩（SPXO），電壓控制式晶體振蕩（VCXO），溫度補償式晶體振蕩（TCXO），恒溫控制式晶體振蕩（OCXO）。目前發展中的還有數字補償式晶體振蕩（DCXO）以及混合式的VOCXO振蕩等。
